Brand Name : BT
Model Number : BT-100V10C20F
Certification : ISO9001
Place of Origin : China
MOQ : 1
Price : USD 5600-7000 Set
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 50 set month
Delivery Time : 15 work days
Packaging Details : Wooden case
Produce name : battery pack aging machine
Input Power : AC380 7KW 50/60HZ
Voltage range : 0-100V
Discharge power : ≦1400W
channel : 7
charge Voltage : 0-10A
discharge Voltage : 0-20A
Warranty : 2 Years

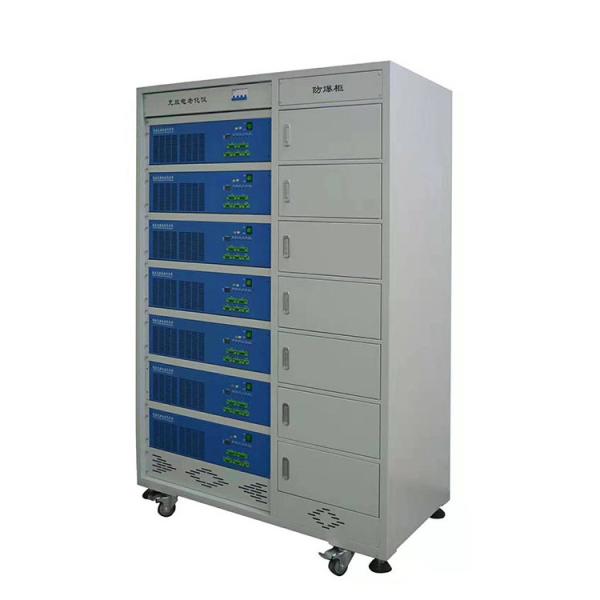

10A Charging 20A Discharge 100V Battery Aging Cabinet Testing Machine
Introduction:
The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested
according to the set process by editing the corresponding steps.
Testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc.
Product characteristics:
♦ The voltage can be set at 10-100V, charging current of 0-10A, discharge current of 0-20A
♦ The computer is not configured locally, so the customer needs to buy it itself
♦ With constant current and constant pressure charging function
♦ The equipment has a constant current discharge function
♦ Fully meet the requirements of the battery pack charge and discharge outlets and charge and discharge outlets
♦ Colleagues can be aging the positive plate charging protection negative plate discharge protection
♦ By charging and discharge cycle of the battery, you can detect whether the charging protection and discharge protection
of the battery are normal
♦ Charge and discharge cycle on the battery and record the charging capacity and discharge capacity
♦ The equipment has anticonnection protection function
♦ The equipment has the protection of voltage upper and lower limit setting
♦ The equipment has a safe discharge current protection function
♦ PC computers can be connected through the serial port to reduce the complexity of instrument use
♦ Network connection mode can be adopted, and the PC computer terminal can control within 254
instruments by only providing one network port
♦ The software system adopts a classic and mature C/S mode
♦ There are two ways: serial port and network
♦ The serial port can realize the accurate communication of several instruments for short distances
♦ The network can achieve long-distance multiple instrument preparation communication
♦ Based on the Windows operation interface, the MYSQ database is used to store the test data
♦ The equipment can view the charge and discharge aging curve, and colleagues can export the curve diagram
♦ In network mode, automatic online, no manual online is required
♦ The tested data provides the measurement data check function
♦ The instrument number is displayed through the LED lamp, and the corresponding instrument number location can be checked at any time
♦ The instrument provides P + and P-interfaces, and CH + and CH-, can test special finished batteries
♦ The battery is mainly in the test range, you can charge and discharge the battery
Input Power | AC 380V 7kw 50/60Hz | |
Voltage | Measuring range | 0~100V |
Precision | ±(0.2% of reading + 0.2% of range) | |
Electric Current | Charging range | 0~10A |
Charging accuracy | ±(0.2% of reading + 0.2% of range) | |
Discharge range | 0~20A | |
Precision | ±(0.2% of reading + 0.2% of range) | |
Charging | Constant voltage cut-off current | (minimum)10mA |
Capacity | Precision | ±1‰ |
Power | Discharge power | ≤1400W |
Time | Inspection time | <2S(Receive real-time & LT; 2s) |
Timing range | 0 ~ 999 hours / Step | |
Data recording interval | ≥5S | |
Median version | 1.1 series | |
Charging | Charging mode | Constant current and constant voltage charging |
Cut-off condition | Voltage, current, relative time, overcharge protection | |
Discharge | Discharge mode | Constant current discharge |
Cut-off condition | Voltage, relative time, over-discharge protection | |
Circulates | Cyclic range | 1~999 |
Single cycle number of steps | 100 | |
Voltage and current detection sampling | Four wire connection | |
Noise | <50dB | |
Database | Using My SQL database to manage test data | |
Communication Mode of upper computer | Based on TCP / IP Protocol, serial port | |
Data output mode | EXCEL,TXT,Chart | |
Communication interface | Mesh opening | |
Number of channels per cabinet | 7 | |
Case size | W*D*H:450MM*300MM*170MM | |
Cabinet size | W*D*H:900MM*600MM*1900MM |
FAQ
A :How can i install and operate the machine by myself?
B: Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the
electrical power, then machine can be working. because the English software were installed in thismachine.what you
need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.
A: How to order?
B: Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request.
We need to know the following information for your order before sending your PI.
A: What's the warranty for the items?
B: We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition.
any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damaged
due to non human factors within one year, we will provide replacement parts free of charge.
A: What scope does the product apply to?
B: Company 13 years committed to column Battery Pack Automation Production Equipment, and column Battery
Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,
power batteries, automotive batteries, etc.
